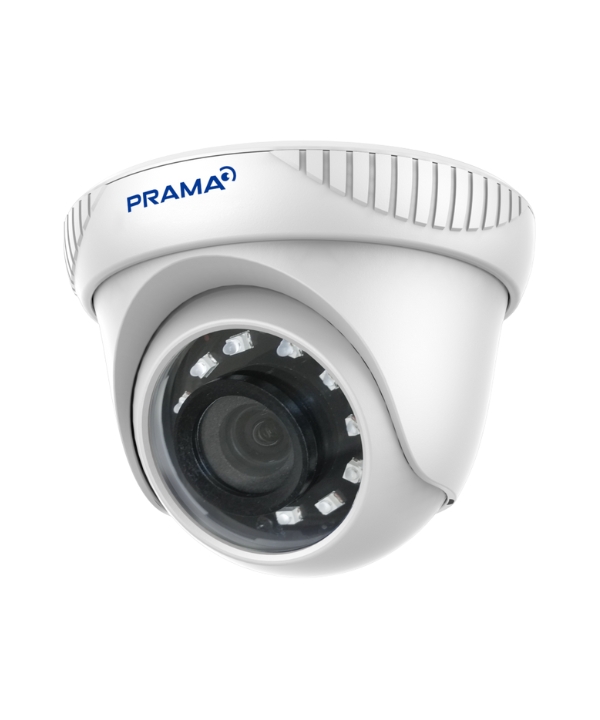

Camera Snapshot
- Sensor: 2 MP CMOS, 1920×1080 resolution
- Signal: PAL/NTSC, 1080p @25/30fps
- Lens: 2.8 mm / 3.6 mm fixed (FOV: 103° / 82.2°), M12 mount
- Min. Illumination: 0.02 Lux (0 Lux with IR)
- IR Range: Up to 20 m
- Shutter: 1/25–1/50,000 s (PAL), 1/30–1/50,000 s (NTSC)
Features
- Day/Night: IR cut filter, Smart/Color/BW modes
- Image Enhancements: DWDR, AGC, BLC, DNR, Brightness, Sharpness, Mirror
- Menu Modes: STD / HIGH-SAT
- Video Output: 1 HD analog
Build & Power
- Angle Adjustment: Pan 360°, Tilt 75°, Rotation 360°
- Material: Plastic, IP66 rated
- Power: 12 VDC ±15%, Max 4 W
- Operating Conditions: -40°C to 60°C, ≤90% humidity
- Size & Weight: Ø89.9 mm × 71.3 mm, 120 g
