Smart Features
- Motion Detection: Human/Vehicle classification on all analog channels
- Perimeter Protection: 4-ch Line Crossing & Intrusion Detection
- Quick Search: By object or event type
Video & Audio
- Compression: H.265 Pro+/Pro, H.265, H.264+/H.264
- Resolution: Up to 4 MP lite, 1080p, 720p, CIF
- Frame Rate: Up to 30 fps (CIF), 15 fps (4 MP lite)
- Bit Rate: 32 Kbps – 10 Mbps
- Dual Stream: Supported
- Audio: G.711u, 64 Kbps, 1-ch RCA input/output, 2-way audio
- Playback: 16-ch synchronous
Inputs & Outputs
- Analog Video: 16-ch BNC (HDTVI/AHD/HDCVI/CVBS up to 4 MP)
- IP Video: 2-ch (up to 18-ch), Enhanced IP mode: 8-ch (up to 24-ch), up to 6 MP
- HDMI Output: Up to 4K @30Hz
- VGA Output: Up to 1080p @60Hz
- Simultaneous HDMI & VGA Output: Supported
- Audio via Coaxial: 16-ch
Network & Storage
- Bandwidth: 128 Mbps total, 96 Mbps incoming (Enhanced IP)
- Remote Connections: Up to 128
- Protocols: TCP/IP, DHCP, DDNS, NTP, HTTPS, etc.
- Storage: 1 SATA, up to 10 TB
- USB: 2 × USB 2.0
- Ethernet: 1 × RJ45 (10/100/1000M)
General
- Power: 12 VDC, 1.9 A
- Consumption: ≤ 15 W (no HDD)
- Temp/Humidity: -10°C to +55°C, 10%–90%

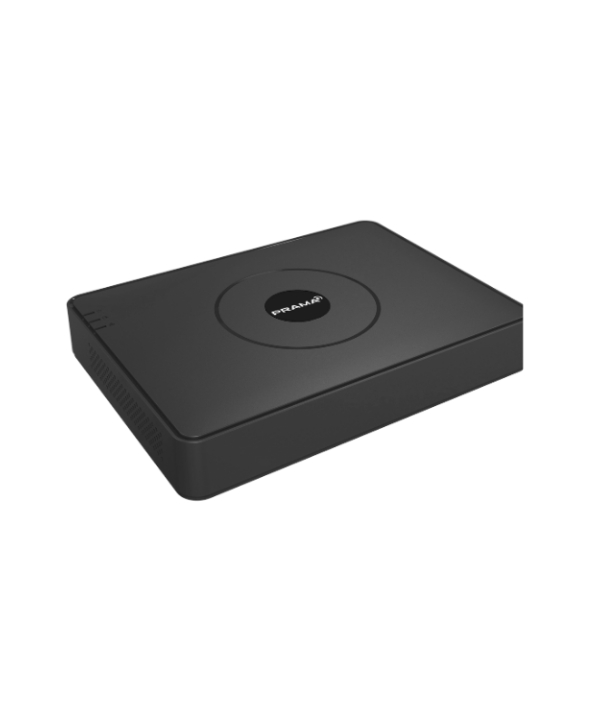

- Model: PT-DRAS1A16Q-K1
- Alarm I/O & Serial: Not available
